Kintex K410T Devboard

Copyright (c) 2022-2025 Antmicro

Overview

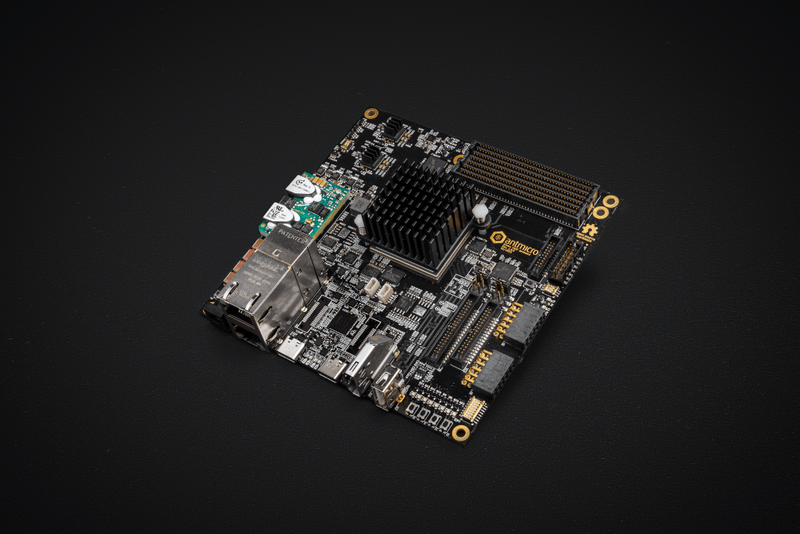

This repository contains open hardware design files for a devkit created for AMD-Xilinx Kintex-7 K410T FPGA.

This development board routes the I/O interfaces from the SoM and provides the necessary power buses. The design files were prepared in KiCad 7.

Repository structure

The main repository directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:

• doc - contains generated schematics and other documentation
• img - contains graphics for this README
• assets - contains visual assets for showcasing the board on Antmicro Open Hardware Portal

Key features

• AMD-Xilinx Kintex-7 K410T FPGA
• 512MB of DDR3L memory
• 256MB of SPI NOR flash
• 8MB of SRAM memory
• Assembly option for 2x QSPI
• Gigabit Ethernet
• HDMI output
• USB Type-C connector for FTDI JTAG and debug
• 2x PMOD
• FMC+ connector

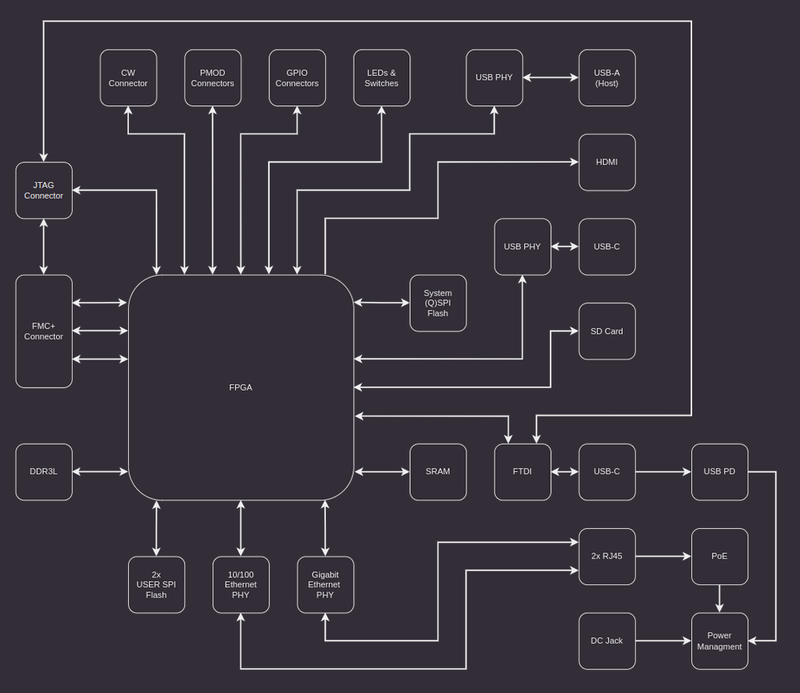

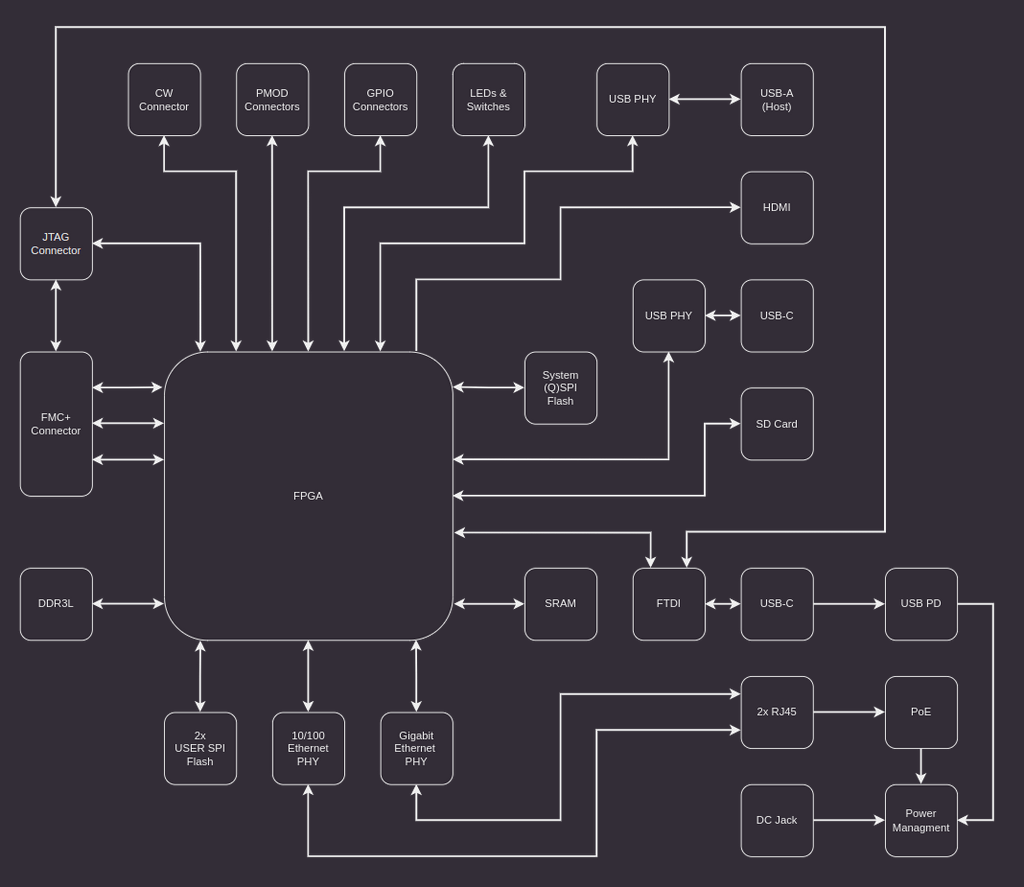

Block diagram

Licensing

This project is published under the Apache-2.0 license.
